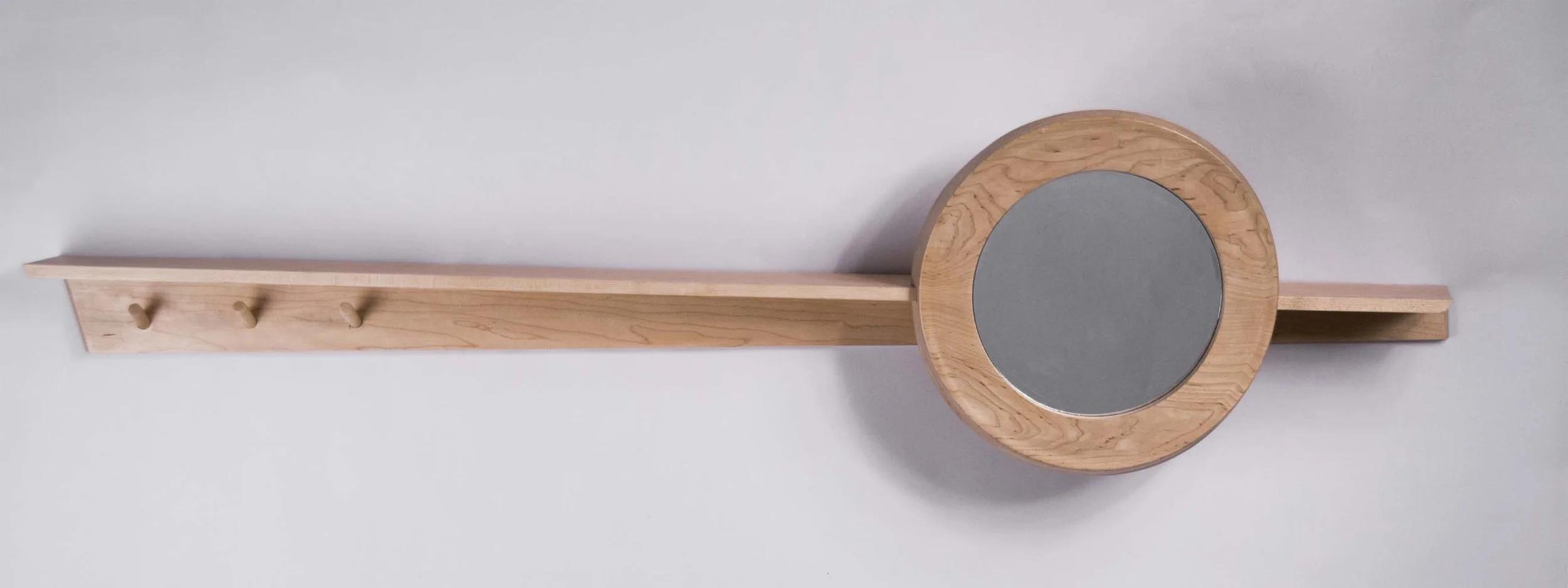

FINAL PRODUCT

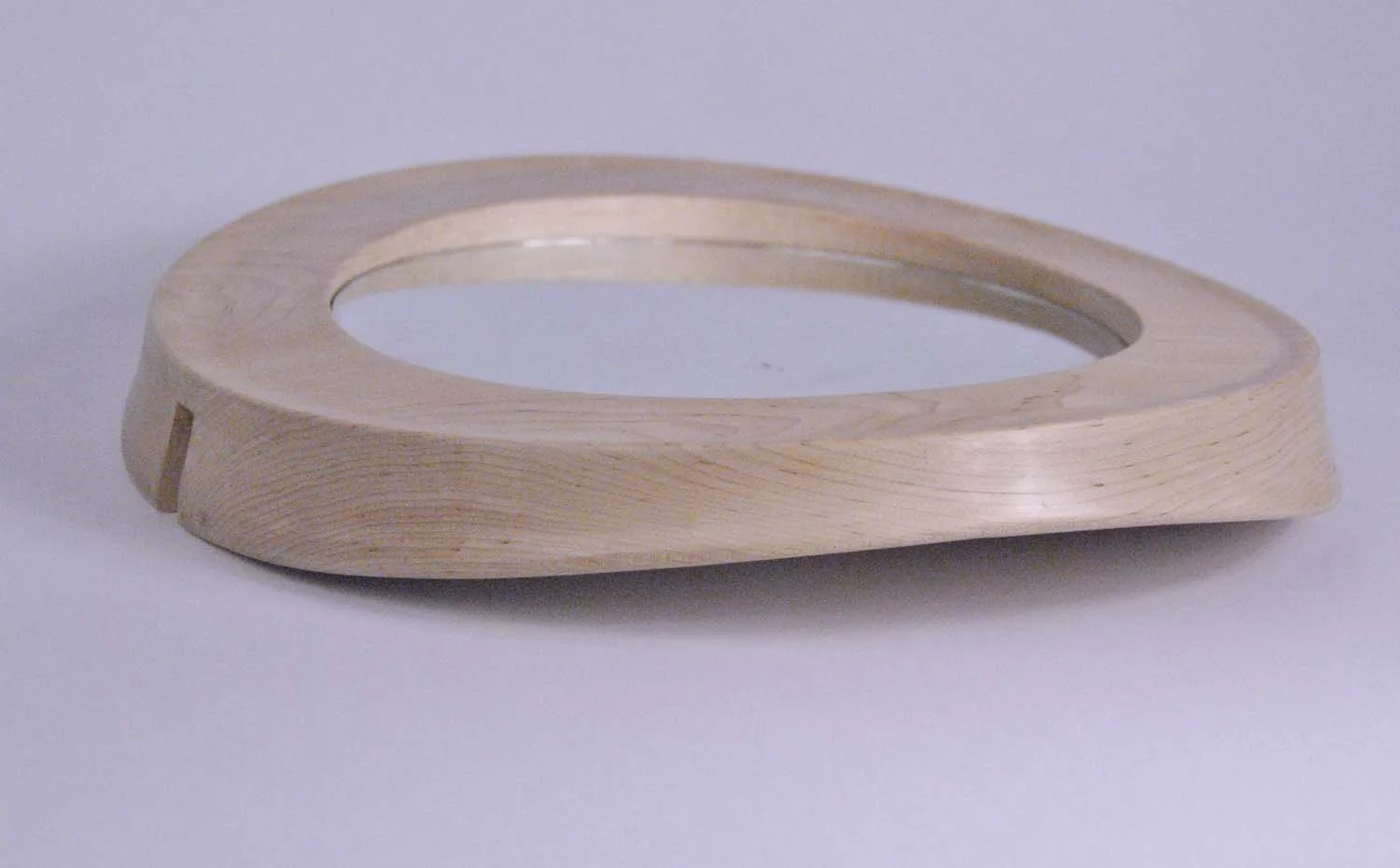

The DalÍ Mirror is an entryway mirror. The construction is a combination of CNC machining and a table saw batch production jig.
MIRROR HOOKS

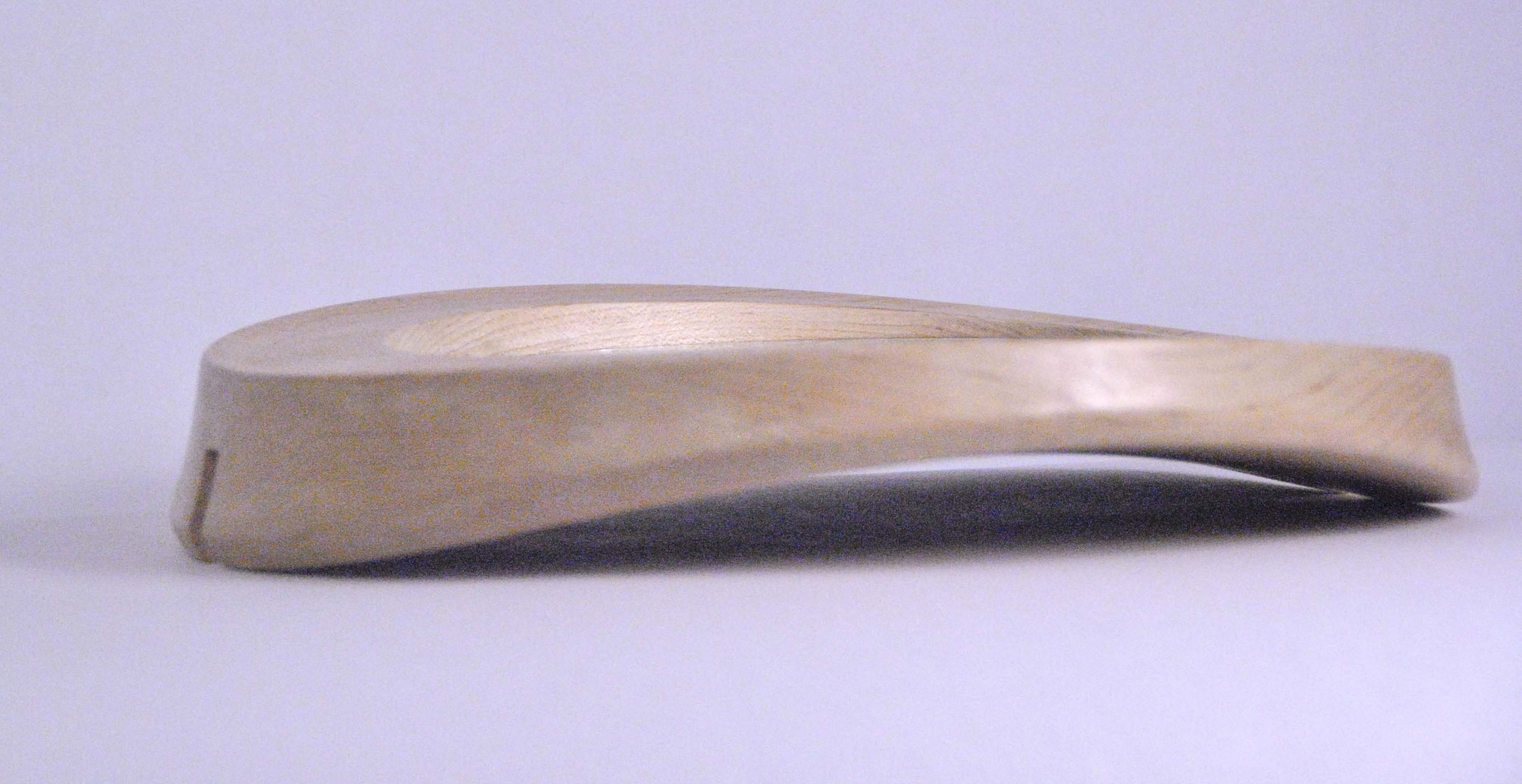

I used iterative CAD models to determine the shape of the mirror. I also needed to make sure the form could be made on the CNC with no undercuts.
MIRROR SHAPE

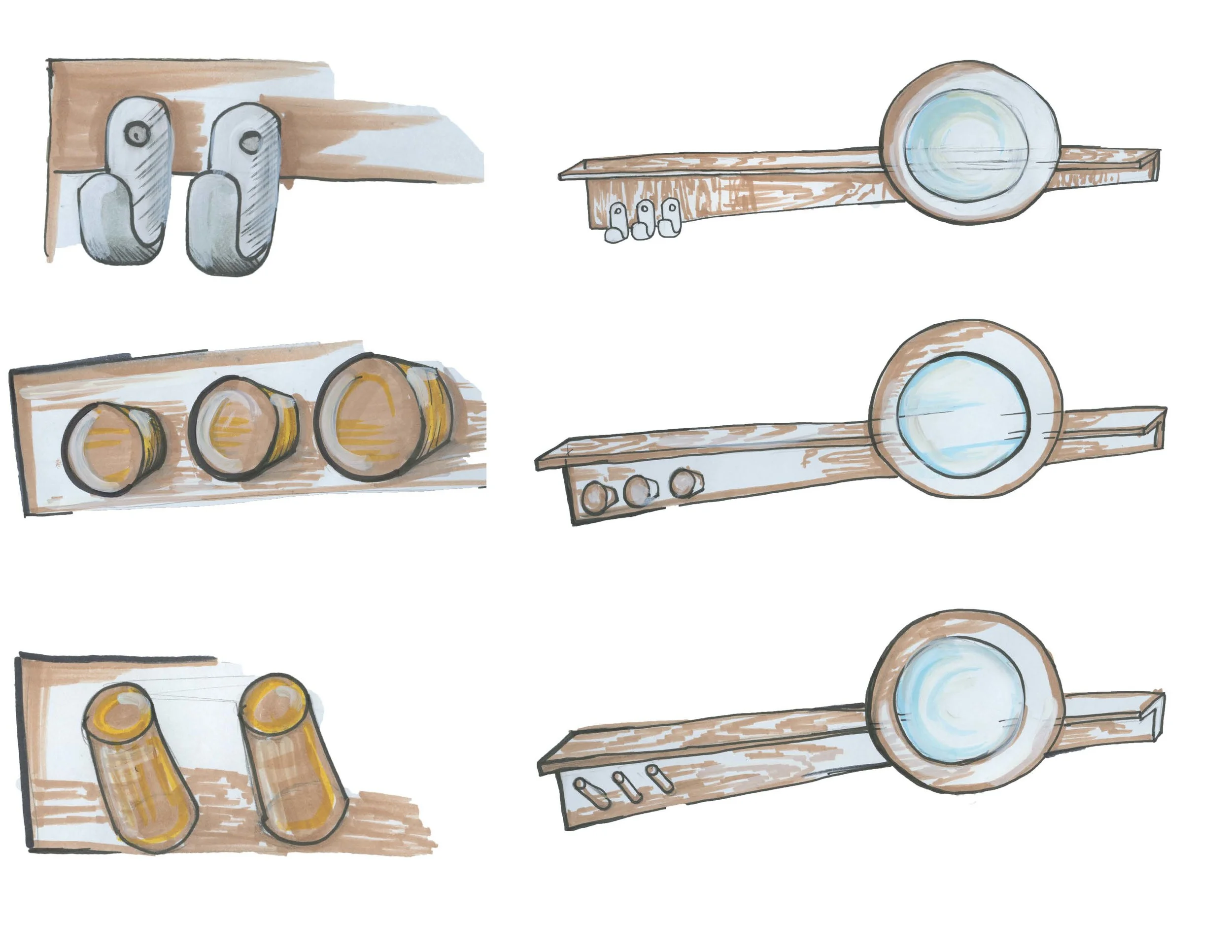

The following sketches show how I determined the hooks for the mirror. I wanted the mirror to be easily produced and I wanted to find a way to easily include hooks.
